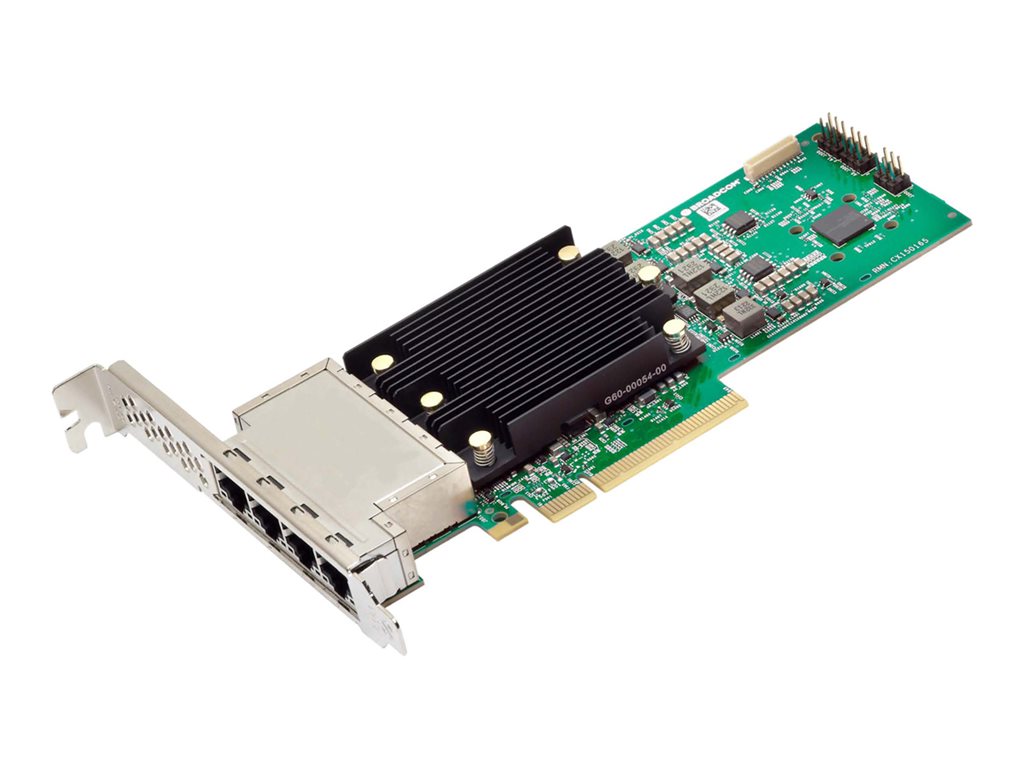

Network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 4 - for P/N: 00WE131, 00WE135, 00WE139, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984
| Main Specifications | |
|---|---|
| Product Description | Broadcom 57412 - network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | 10Gb Ethernet x 4 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | IPv4, IPv6, TCP, UDP |
| Compliant Standards | IEEE 802.3an, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: 00WE099, 00WE103, 00WE107, 00WE111, 00WE115, 00WE119, 00WE123, 00WE127, 00WE131, 00WE135, 00WE139, 40K5581, 40K5643, 40K5679, 40K5793, 40K8785, 40K8951, 40K8957, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 4 x 10Gb Ethernet - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018 Third Edition, UL 62368-1 Third Edition, CB, UL 1977, UL 796, UL 94, CSA C22.2, EN 55035, EN 61000-4-2, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC 47 CFR Part 15 Subpart B Class A, ICES-003 issue 7 Class A, AS/NZS CISPR 32:2015 Class A, CNS 15936, CNS 15663, KN32 Class A, KN35, VCCI-CISPR 32:2016 |
| Networking | |
| Ports | 10Gb Ethernet x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | IPv4, IPv6, TCP, UDP |
| Features | MSI-X, MSI, PXE boot, UEFI support, iSCSI boot, Jumbo Frames support (up to 9600 bytes), Interrupt coalescing, tunnel-aware stateless offloads, LRO, LSO, RSS, TSO, TSS, vSwitch Acceleration, Mware NetQueue and Microsoft VMQ, NetQueue, VMMQ, FLR, GRE, GENEVE support, NVGRE, SR-IOV, VXLAN, DCBX support, ETS, PFC, QCN, TruManage, MCTP over SMBus, OCP support, SMBus 2.0 |
| Compliant Standards | IEEE 802.3an, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 2.7 in |
| Compatibility Information | |
| Designed For | P/N: 00WE099, 00WE103, 00WE107, 00WE111, 00WE115, 00WE119, 00WE123, 00WE127, 00WE131, 00WE135, 00WE139, 40K5581, 40K5643, 40K5679, 40K5793, 40K8785, 40K8951, 40K8957, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984 |
